Μονάδα τροφοδοσίας 20V DC για οπτικούς δέκτες:
- QUAD-GTU και
- QUATRO-GTU

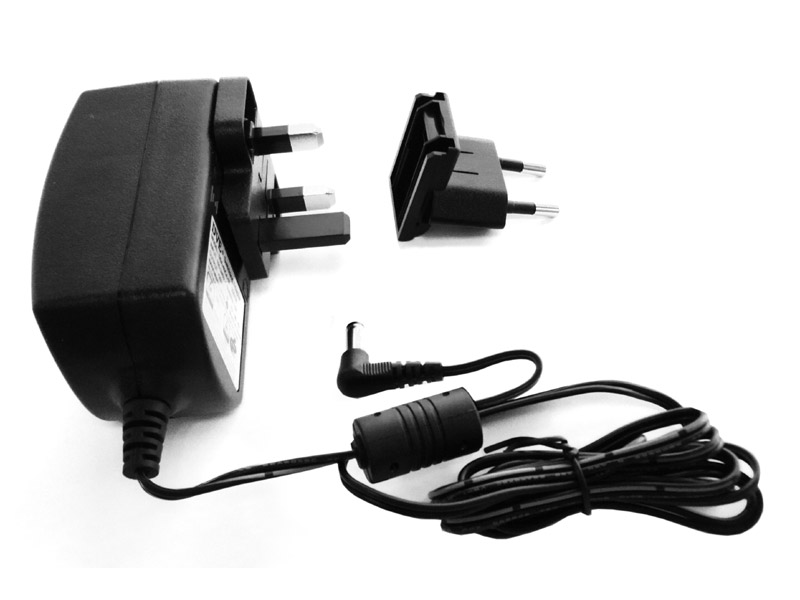

PSU-QUATRO 20V
Input Specification
AC input voltage: 100 – 240V AC
AC input frequency: 50/60 Hz
AC input current: 1A max.
Output Specification
DC output voltage: +20V
Nominal load current: 1200 mA
Nominal output power: 24 W
Turn on delay: 2 seconds max.
Over current protection: 5.5A max. (with auto recovery function)
Connectors
Input plug type: Wall mount, EU/UK - pin
Output plug type: Jack plug 5.5 x 2.1 x 12 mm
Environmental Specification
Operating temperature: 0 to 40°C
Storage temperature: -20 to 60°C
Dimensions
Size: 84.9 x 50 x 40.5 mm
Weight: 200g max.
Έγγραφα Υποστήριξης
FAGOR® PSU-QUATRO – Product Info
FAGOR® PSU-QUATRO – Declaration of Conformity
